PROJECT · PAPENDRECHT · ATTENDANT
Goods lift with attendant for Veth Propulsion
For Veth Propulsion in Papendrecht, a specialist in azimuth and bow thrusters for ships, Hublift installed a 1,500 kg goods lift with attendant. The lift is housed in a completely enclosed, self-supporting steel shaft with high-speed roller doors and was installed without a pit, using a 150 mm ramp.
Lifting capacity
1,500 kg
Platform
1,810 × 3,050 mm
Lifting height
3,250 mm
Doors
High-speed roller doors
01 · IN BRIEF
Project at a glance
What was built, where, and why, all in one place.
Client
Veth Propulsion in Papendrecht, specialized in azimuth and bow thrusters for ships, from offshore and dredging vessels to inland vessels and superyachts.
Lift type
Hydraulic goods lift with attendant: goods plus one attendant.
Shaft
Completely enclosed self-supporting steel shaft in RAL 7016, 2,600 × 3,300 × 5,850 mm.
Doors
High-speed roller doors of 1,810 × 2,100 mm, integrated into the shaft.
Without pit
No floor excavation required: access via a 150 mm ramp.
Safety
2,000 mm high cabin with sensor strip, emergency communication, emergency lighting, and locking pins on the floor level.
02 · THE CHALLENGE
Control cabinets and components safely to the upper floor
Veth Propulsion wanted to move control cabinets and components safely between the ground floor and the upper floor, allowing an employee to ride along as an attendant. The lift had to be placed on the existing floor, without a pit, and be fully enclosed from the workspace.
Customer requirements
- Transport of control cabinets and components
- An attendant may ride along
- Installation without a floor pit
- Enclosed shaft with high-speed doors
03 · THE SOLUTION
An enclosed goods lift with high-speed roller doors
Hublift supplied a hydraulic goods lift with a double lifting column in a completely enclosed, self-supporting steel shaft. Because the lift was installed without a pit, the control cabinets and components are driven onto the platform via a 150 mm ramp. The high-speed roller doors are integrated into the shaft, and thanks to the 2,000 mm high cabin, an attendant can ride along safely.
1,500 kg
Lifting capacity
For control cabinets and components.
1,810 × 3,050
Platform (mm)
Space for the load and an attendant.
High-speed roller doors
1,810 × 2,100 mm
Integrated into the shaft.
150 mm
Ramp
No pit required.
Cabin
With attendant
With emergency communication and emergency lighting.
RAL 7016
Self-supporting shaft
Completely enclosed steel.
04 · INSTALLATION AND INSPECTION
Installed without a pit, fully tested by our technicians
The completely enclosed, self-supporting shaft and the lift were assembled on-site in Papendrecht on the existing floor. The control cabinet for the electrical and hydraulic components is located on the ground floor, within 2 meters of the lift. After installation, our technicians fully inspected and tested the lift.
01 · Assembly of self-supporting shaft
02 · Installation of lift and roller doors
03 · Inspection and testing by our technicians
04 · Handover
05 · PROJECT PHOTOS

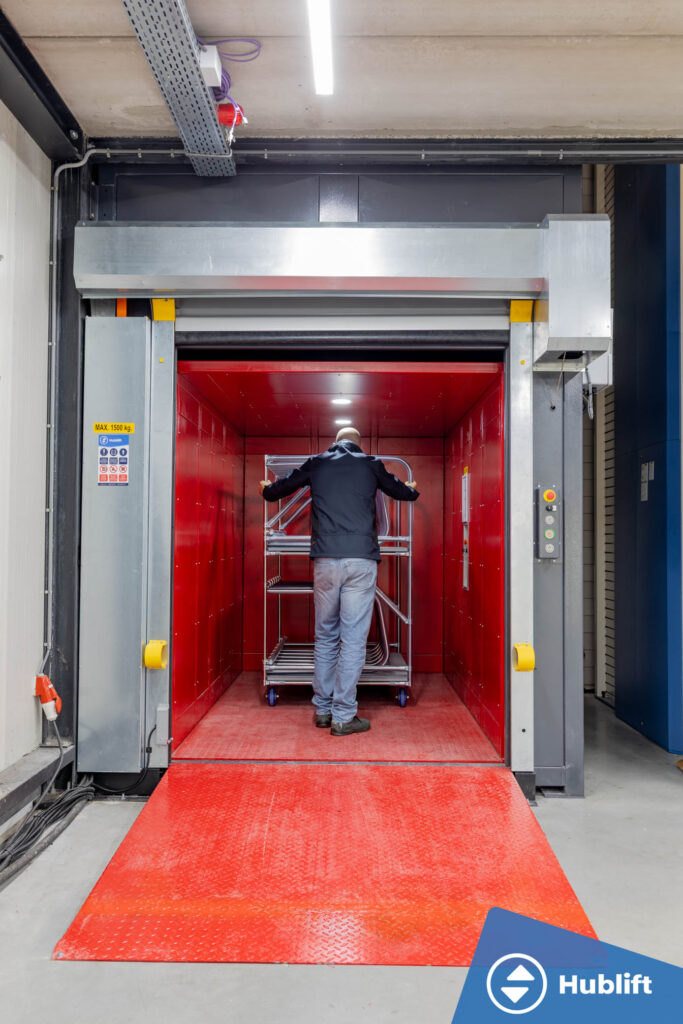

The goods lift in use

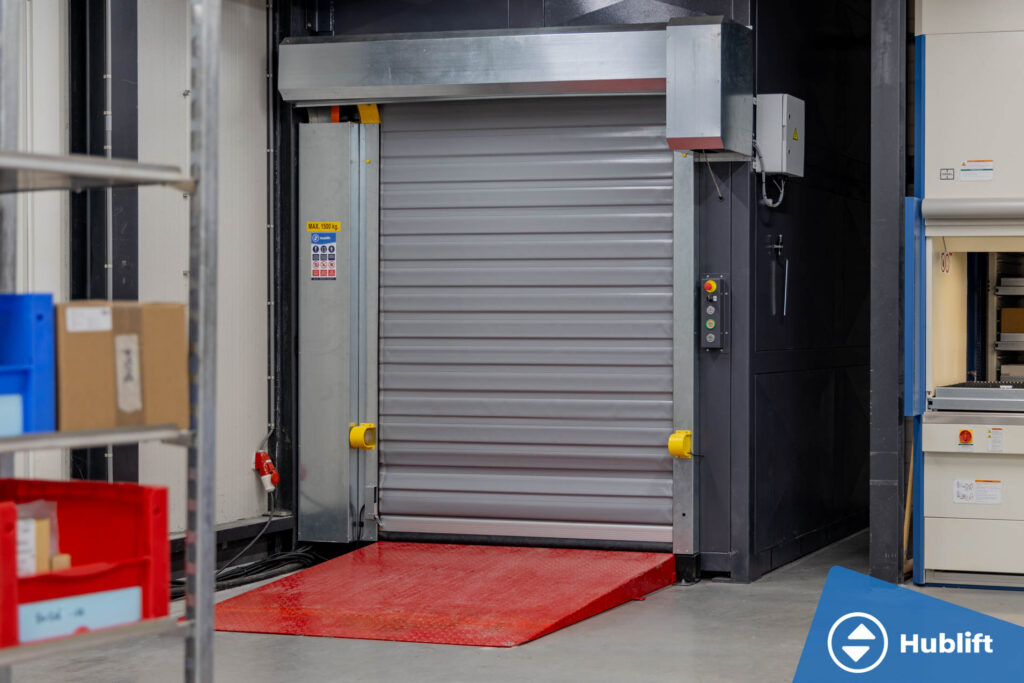

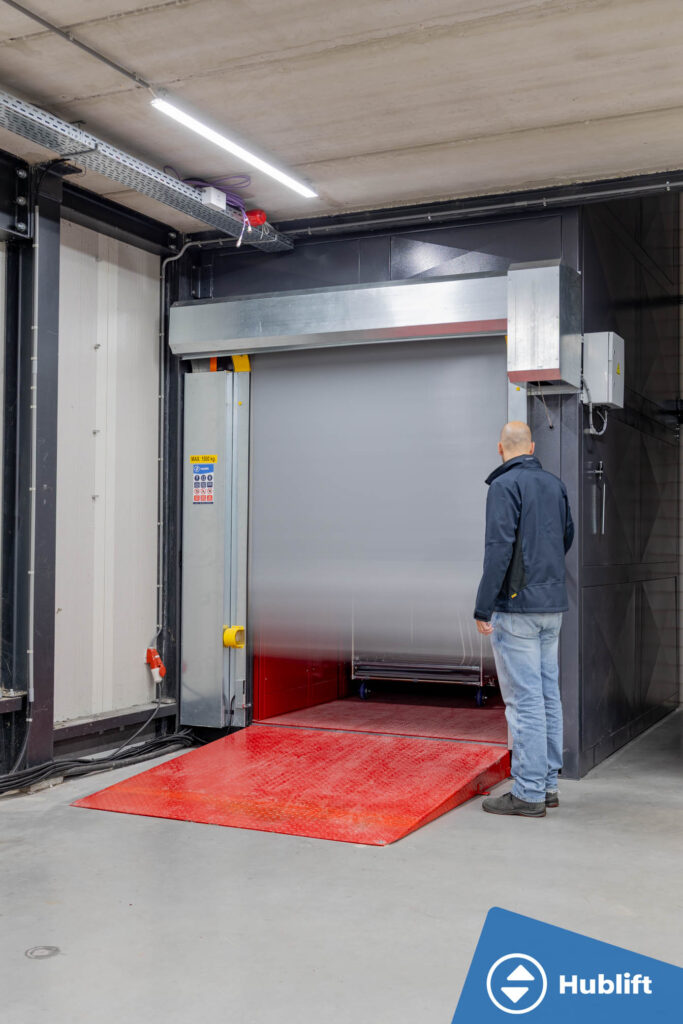

Enclosed shaft
The high-speed roller door fully encloses the shaft.

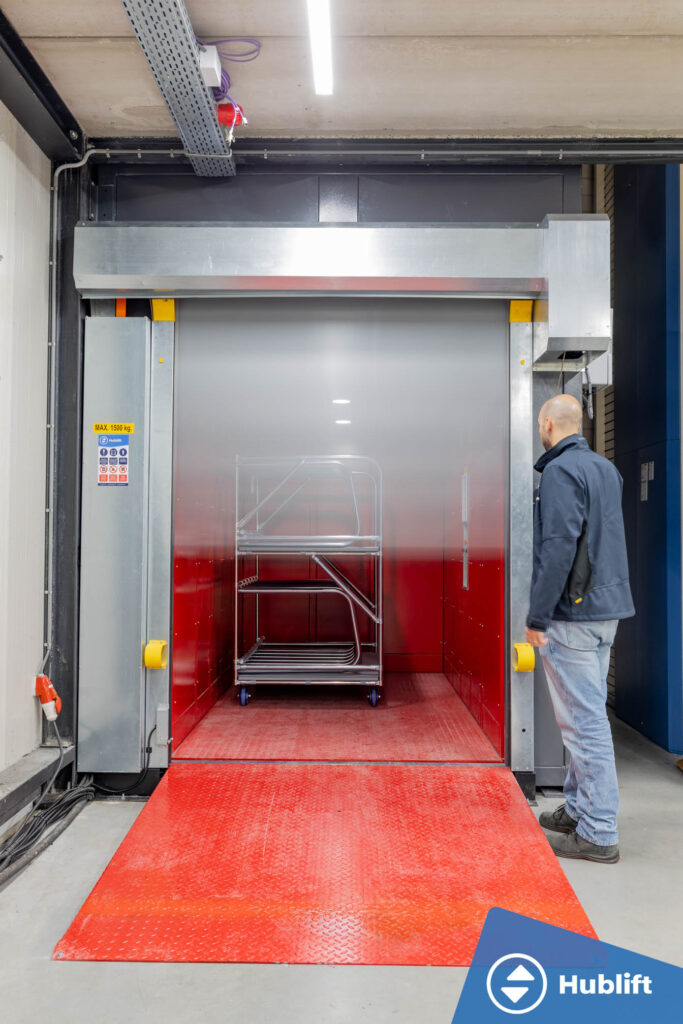

High-speed roller door
The door opens quickly, allowing for efficient loading.

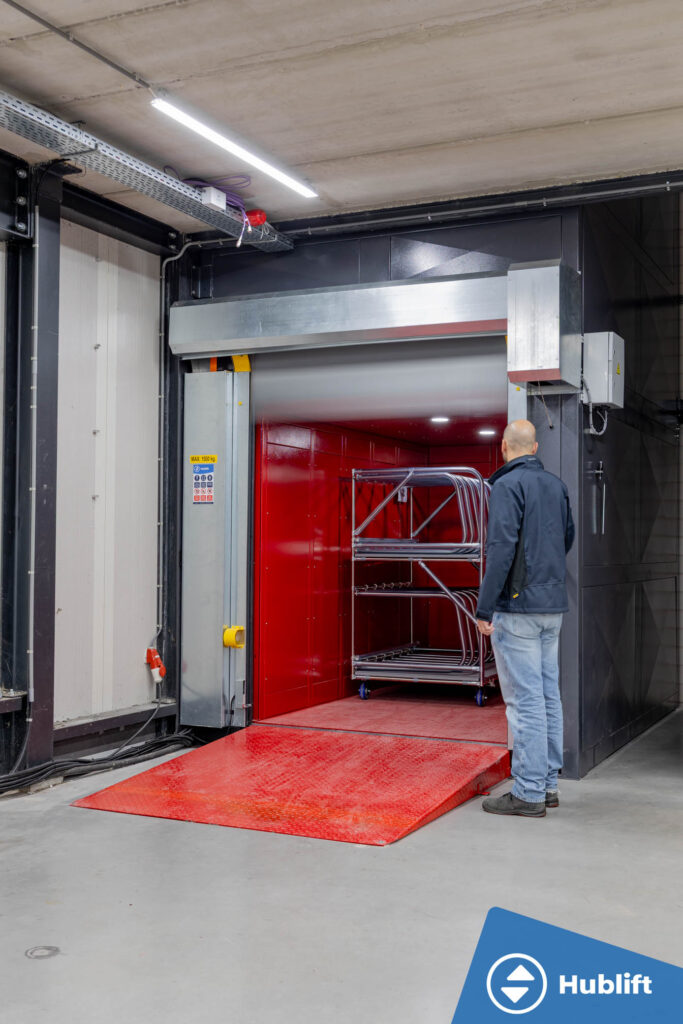

Controls next to the door
The control panel is located directly next to the shaft door.

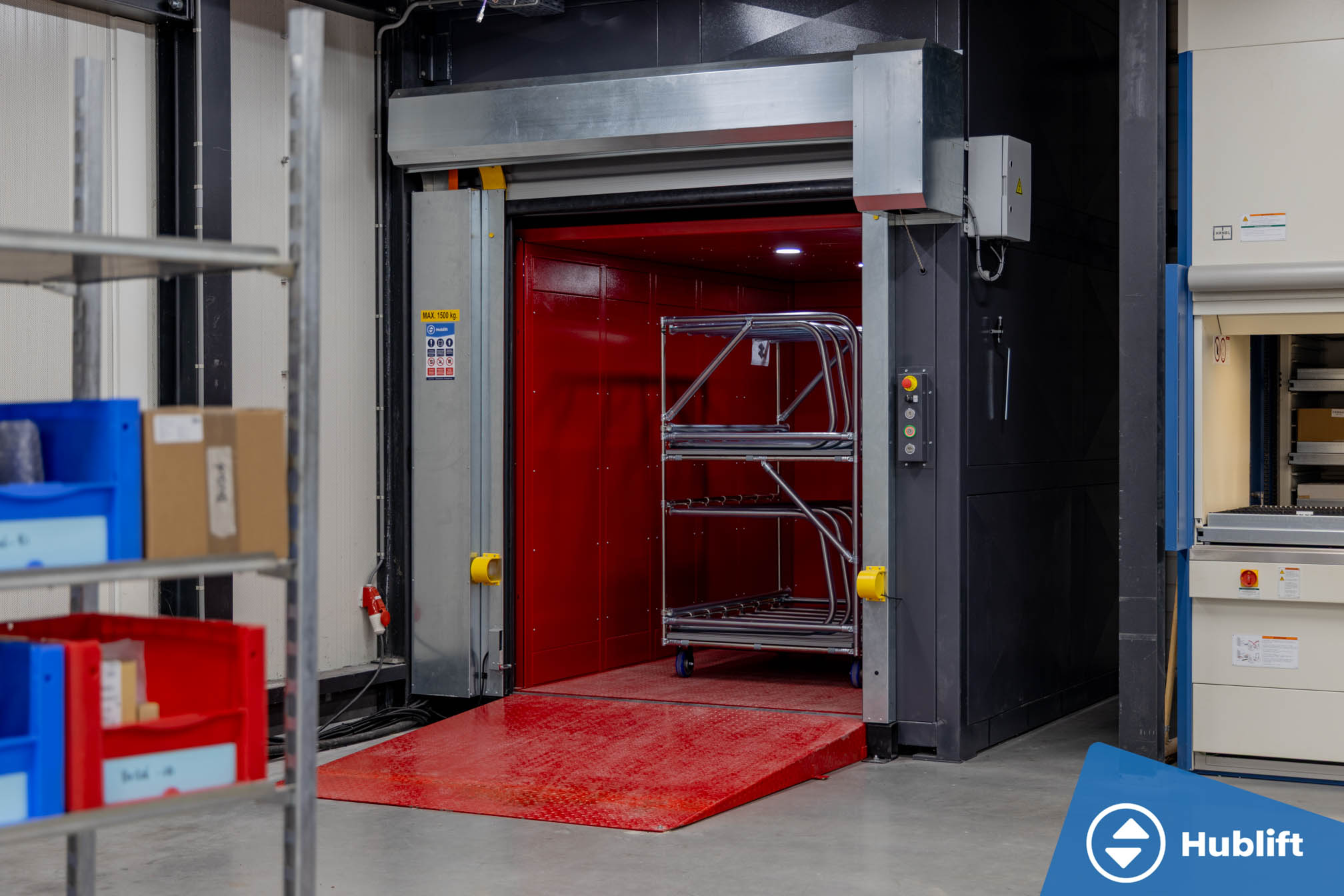

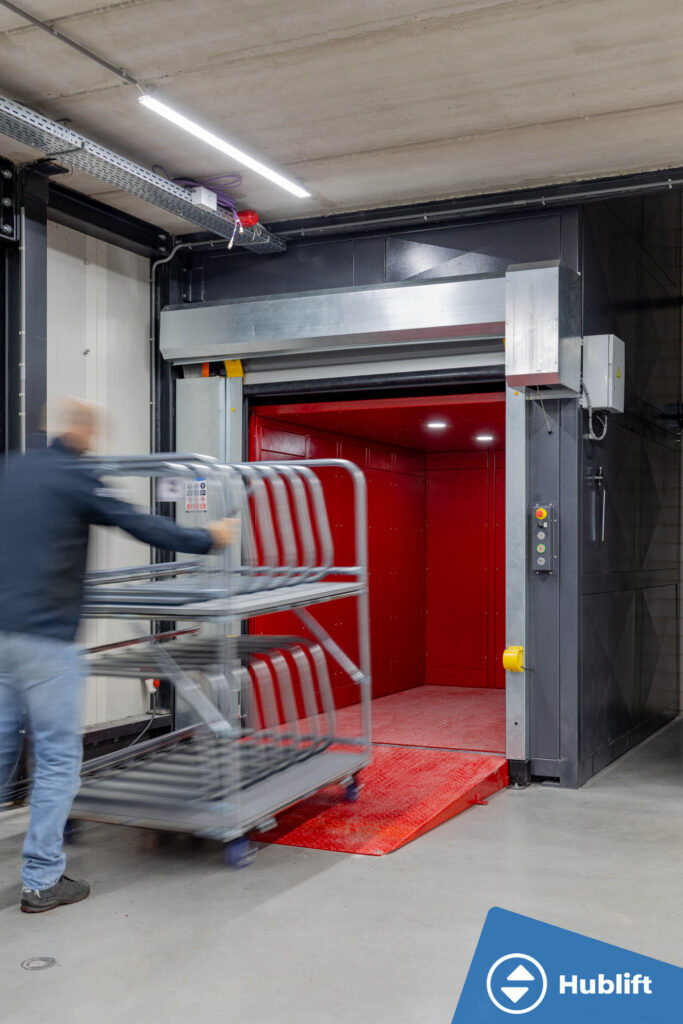

Threshold-free entry
The load is driven straight into the cabin via the ramp.

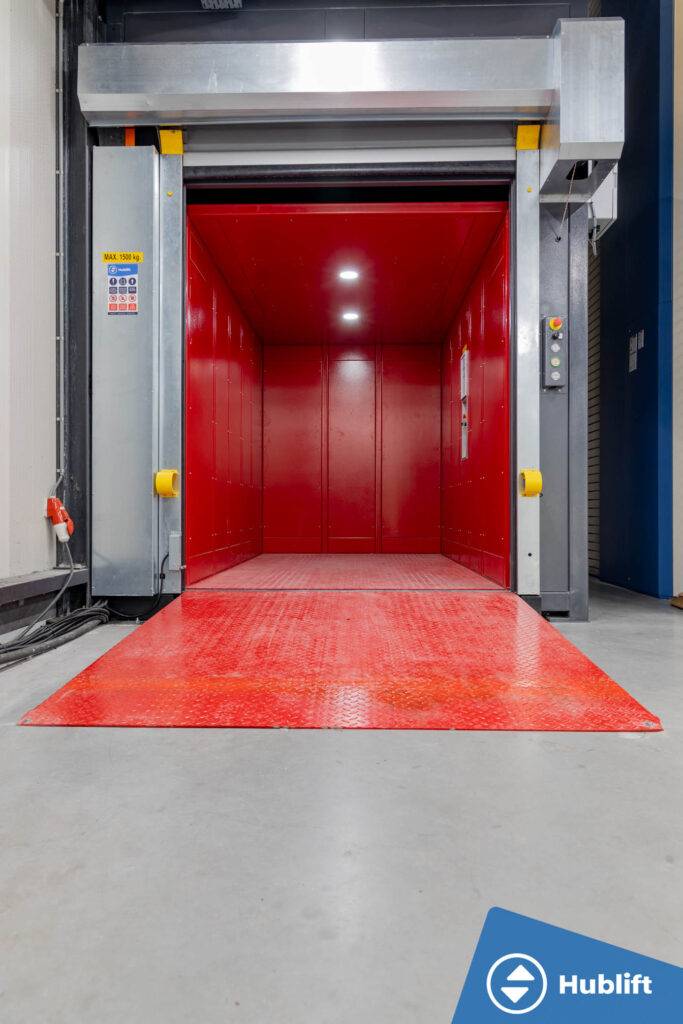

Illuminated cabin
2,000 mm high cabin with LED lighting.
06 · THE RESULT
Safe transport between ground floor and upper floor
Veth Propulsion now moves control cabinets and components safely between the ground floor and the upper floor, with the option for an attendant to ride along. The enclosed shaft with high-speed roller doors fits into the business space without the need for a pit in the floor.
