Hydraulic goods lift, custom built
A hydraulic goods lift uses a hydraulic cylinder to lift pallets, machinery, and goods between floors. Hublift installs the lift in an existing shaft or provides a self-supporting steel shaft, with a lifting capacity of up to 10,000 kg.
Lifting capacity
Up to 10,000 kg
Speed
0.15 m/s
Lift pit
150 mm or ramp
Warranty
24 months
01 · IN BRIEF
Hydraulic goods lift at a glance
The most important facts, all in one place.
Operation
A hydraulic cylinder pushes the platform upwards. This is robust for heavy loads and low-maintenance.
Installation
In an existing concrete or masonry shaft, or with a self-supporting steel shaft.
Cylinders
One cylinder as a base. For heavier loads, 2 or 4 cylinders are used for extra stability.
Lift pit
A pit of 150 mm is sufficient. Without a pit, a ramp is installed.
Control system
No machine room required. The control cabinet is located on the ground floor, within 2 m of the lift.
Standard
CE-marked, according to Machinery Directive 2006/42/EC.
02 · CONSTRUCTION
How a hydraulic goods lift is constructed
A hydraulic goods lift consists of a few robust components:
- The lifting platform, on which the load is placed.
- Guide rails and hydraulic cylinder. The rails are located to the left and right of the platform.
- Control cabinet with hydraulic pump, on the ground floor.
- A reinforced concrete wall for mounting the rails, or a self-supporting steel shaft.
- A floor recess or ramp, allowing you to drive straight in.
Because the cylinder pushes the platform, no machine room is required above the lift.
03 · SELECTION GUIDE
When should you choose a hydraulic goods lift?
A lift shaft already exists
In that case, we build the lift into the existing shaft. The landing doors are installed in the front wall.
You transport heavy loads
With 2 or 4 cylinders, the lift can handle up to 10,000 kg, such as machinery or large pallets.
Construction space is limited
No machine room and no deep pit required. A pit of 150 mm or a ramp is sufficient.
An old lift needs to be replaced
Hublift replaces outdated goods lifts, including those in existing shafts. View the replacement in Germany.
04 · SPECIFICATIONS
Technical specifications
Standard values. Every lift is custom built, so your version may vary.
Amount of cilinders
1 to 4
engine
2.2 kW, 400 V / 50 Hz
Speed
0.15 m/s
Lifting capacity
Up to 10,000 kg, depending on the platform
Floor recess
150 mm, or a ramp
Control cabinet
500 × 500 × 1,300 mm, within 2 m of the lift
Doors
Single or double hinged doors, 2,000 to 2,500 mm high
Shaft (optional)
Painted steel, standard RAL 7024
Safety
Protected against overload, hose and chain rupture, and uncontrolled movements
05 · OPTIONS
Options and versions
Self-supporting shaft
No shaft? Then we provide a steel shaft in a RAL color of your choice. Read more about the goods lift with shaft.
passenger transport
One attendant travels along in a closed cabin. See the goods lift with attendant control.
Cabin
A (partially) enclosed cabin, with safety sensors at the entrance and exit.
Electric roller doors
No room for hinged doors? Roller doors open and close quickly.
Through-loading lift
Doors at the front or rear, selectable per stop.
Locking
For high lifting capacities, electric or hydraulic bolts secure the platform.
06 · LIFT CONFIGURATOR
Configure your hydraulic goods lift in 3D
Choose lifting capacity, shaft, doors, and stops in the lift configurator. You can see the lift immediately in 3D and request a quote based on your own design.
07 · PROJECTS
Hydraulic goods lifts in practice
Real projects in an existing shaft, with our own photos.

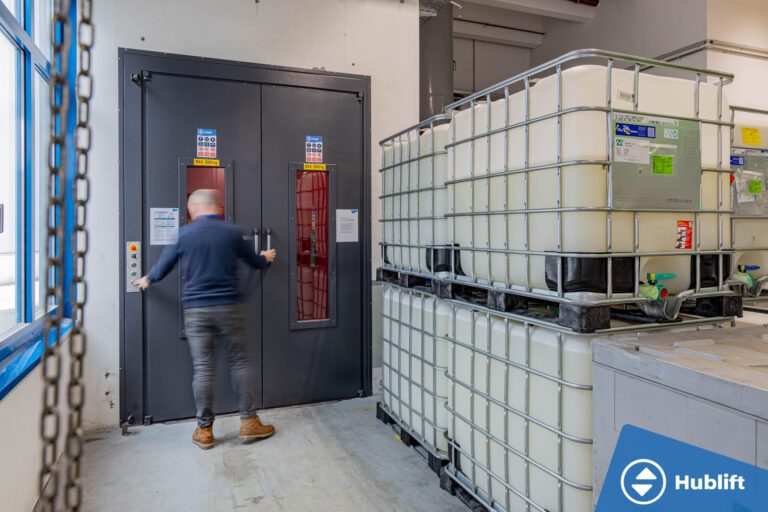

Goods lift with attendant control, 5,000 kg, in an existing shaft
Replacement of an outdated goods lift in Germany: a 5,000 kg hydraulic goods lift with attendant control in the existing shaft, TÜV-approved. Bekijk project

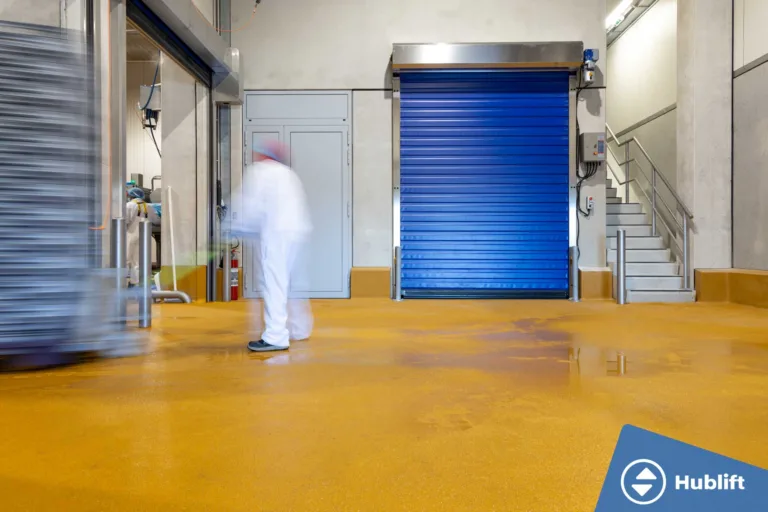

4,000 kg goods lift with automatic roller doors
4,000 kg goods lift with automatic roller doors and a stainless steel platform, for a company in the food industry. Bekijk project

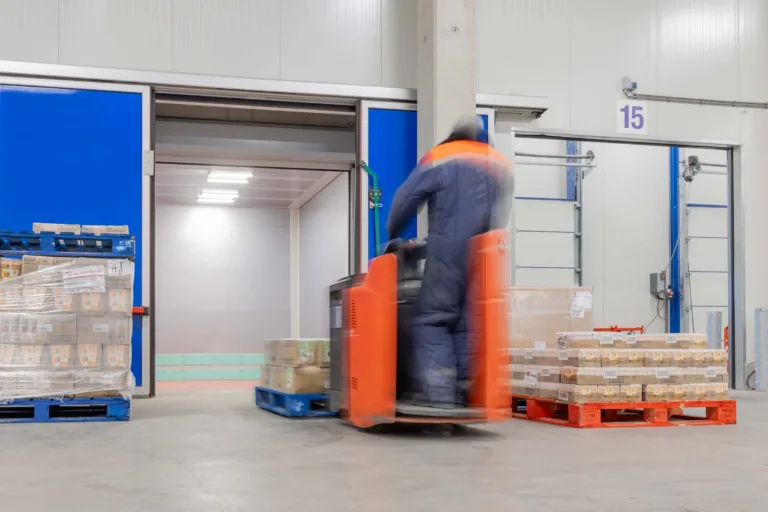

Four goods lifts for Frigo’s refrigerated and freezer terminal
Four 5,000 kg goods lifts for Frigo’s refrigerated and freezer terminal, also suitable for forklifts and large temperature differences. Bekijk project
08 · FREQUENTLY ASKED QUESTIONS
Questions about the hydraulic goods lift
What is a hydraulic goods lift?
A lift for goods where a hydraulic cylinder pushes the platform upwards. It is robust, low-maintenance, and suitable for heavy loads up to 10,000 kg.
Is a machine room required?
No. The control cabinet with pump is located on the ground floor, within 2 m of the lift.
How deep must the lift pit be?
150 mm is sufficient. If a pit is not possible, we install a ramp.
Can the lift be installed in an existing shaft?
Yes. The lift is built into an existing shaft with solid walls. Without a shaft, we provide a self-supporting steel shaft.
How much does a hydraulic goods lift cost?
A Hublift goods lift starts from €25,000. The price depends mainly on the number of stops and the lifting height. See goods lift prices.
How long is the delivery time?
Average 10 to 12 working weeks after drawing approval, plus approximately 2 weeks of installation by our own technicians.
