Home lift

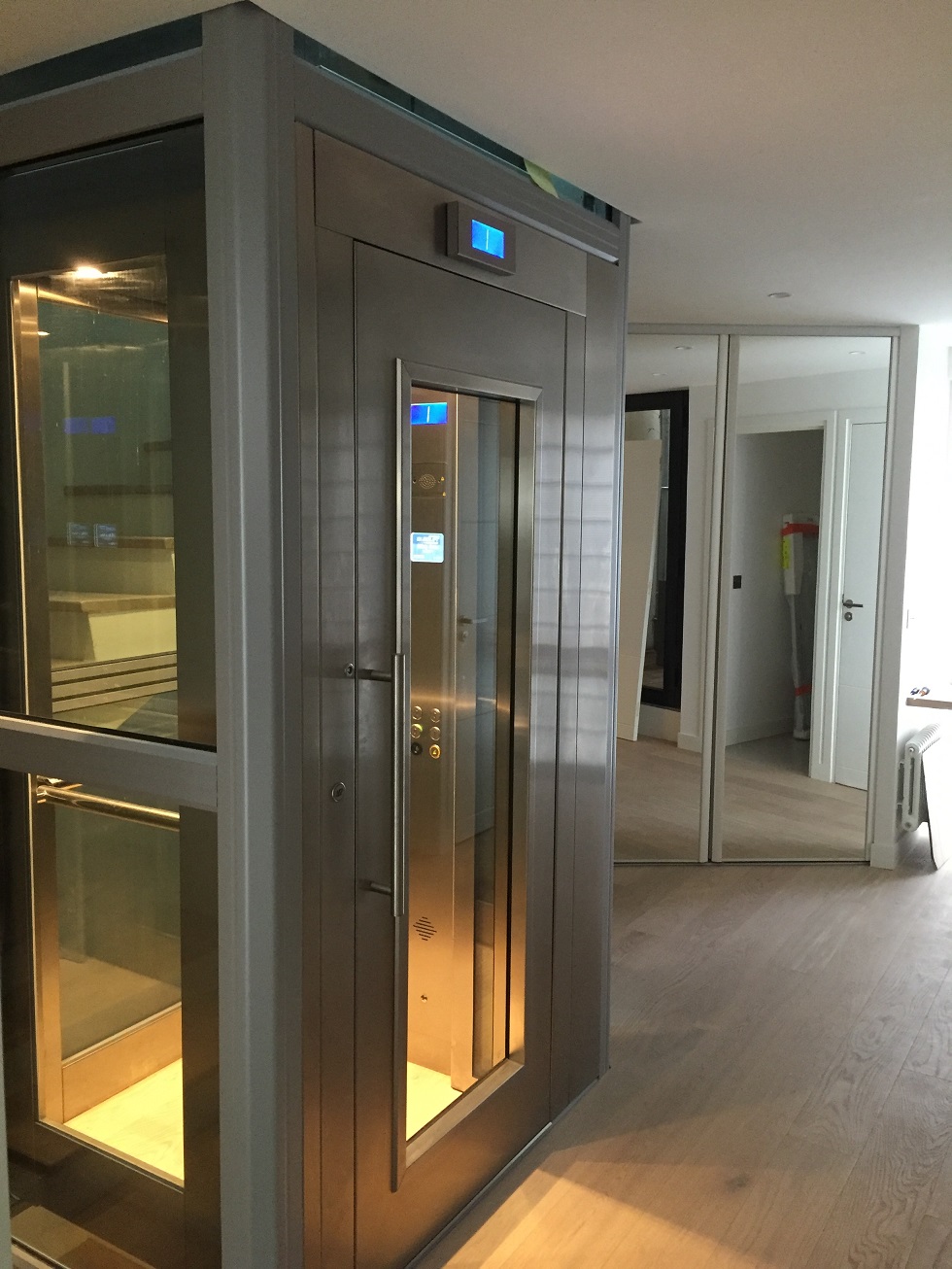

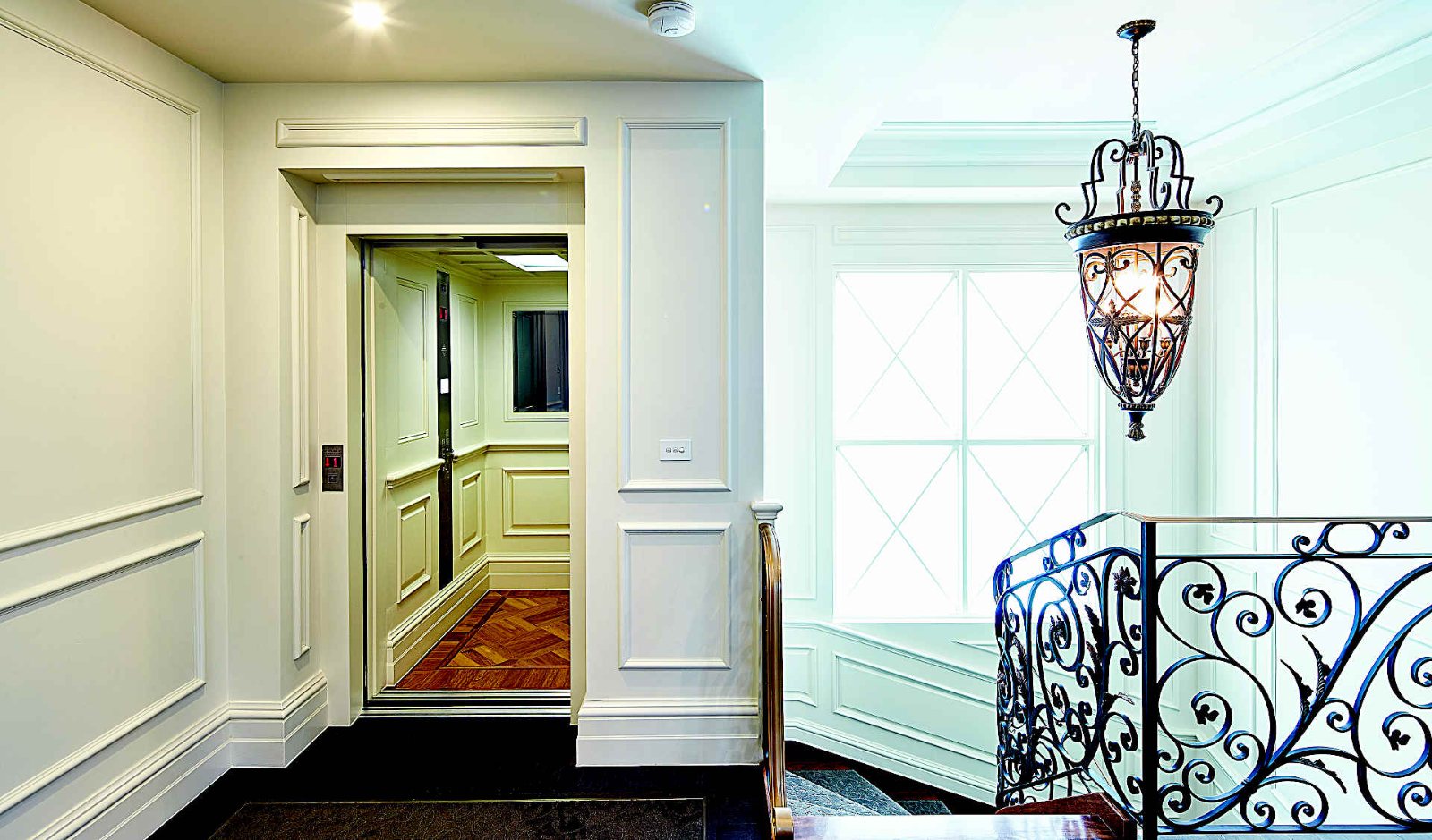

An affordable home lift to move people over several floors in a building. These lifts are designed to be built in new or existing houses.
Drive and control devices are located in a separate machine cabinet that can be placed up to 20 meters from the lift. The construction shaft may consist of bricks, the rail wall preferably being made of reinforced concrete.
Our home lift is available with the following options:
- Cab version
- Door version
- Self-supporting shaft
- Various interior options
Extensions to Hublift’s home lift
Our home lift can be expanded with various options and can be placed at almost any location. An existing shaft is not necessary, if used Hublift supplies a tailor-made shaft in which your passenger lift can be mounted.
lift shaft

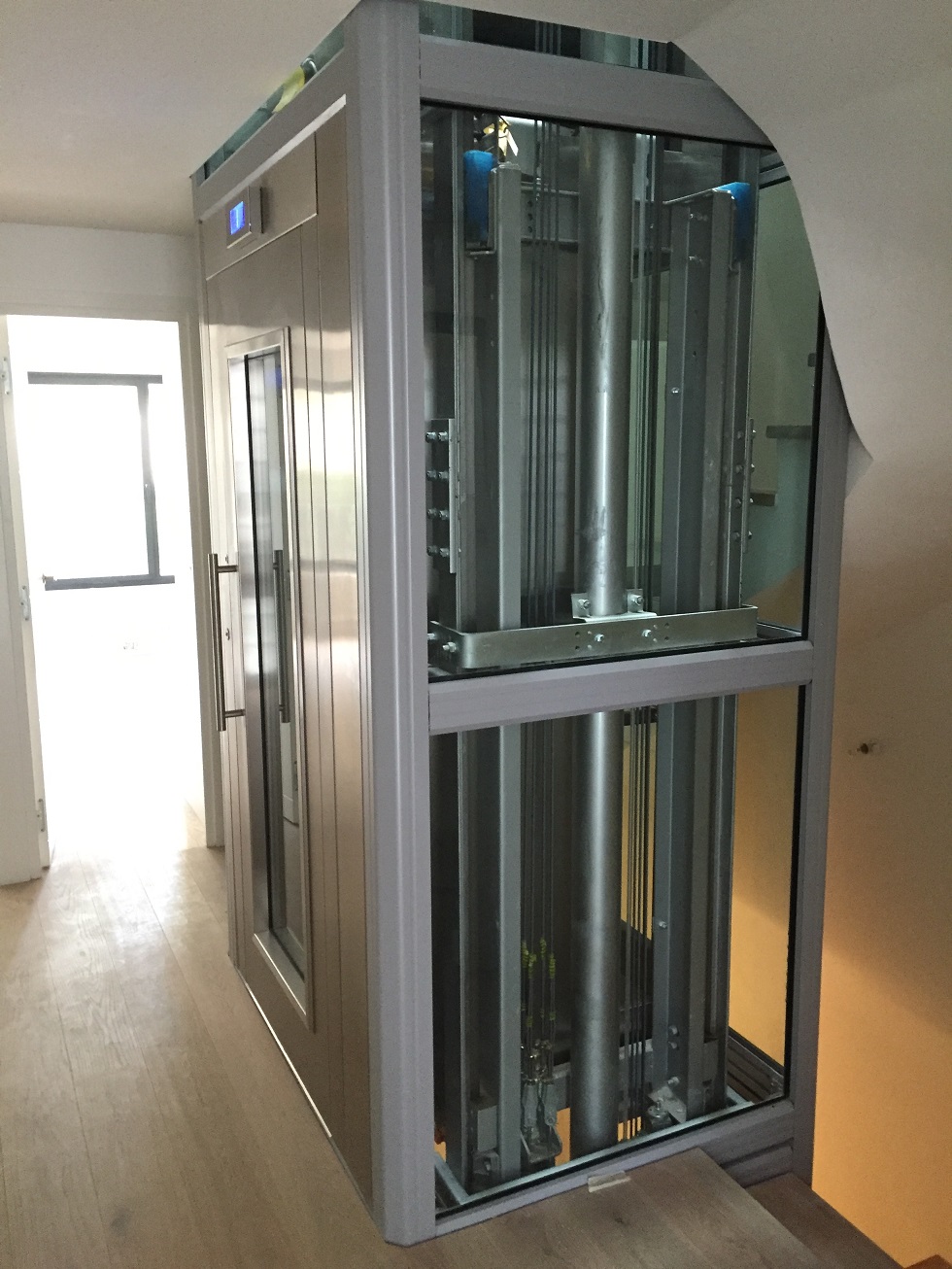

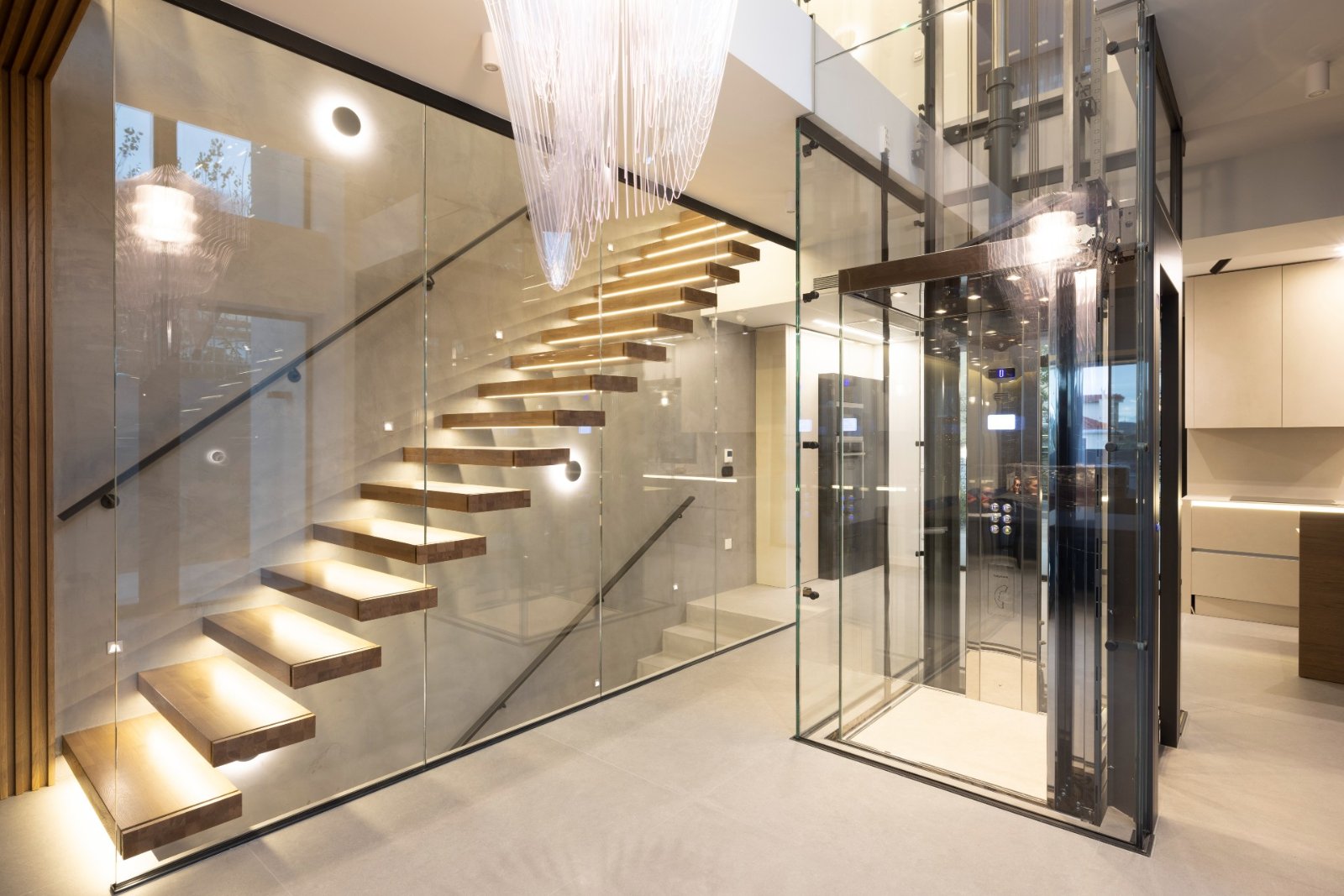

Is there no existing lift shaft in which the lift can be placed? Then Hublift can supply a self-supporting lift shaft made of steel, optionally finished with glass or a color of your choice.
Doors
Do you want to adapt the lift doors to the interior of your home? Then we can deliver the doors in the desired RAL color. There is also an option to opt for sliding doors instead of patio doors.
Cabin Interior
The cabin can be customized as desired. Together with you, we determine the desired look and select the right materials and colors for the interior of the cabin.
Home lift specifications
Technical drawing home lift
1)Doors on the floors to secure the entrances.
2) Lift shaft
3) Reinforced concrete wall for fixing the rails.
4) Rail Fixing Wall.
5) Lighting.
6) Switch box.
7) Floor (recess) or ramp.
| Amount of cilinders | 1-2 |
| engine | 1.1kw 400v/50HZ |
| Speed (m/s) | 0,15 |
| Maximum capacity (kg) | 450 |
| Required floor recess (mm) | 150 |
|
Front Control Box Dimensions
electrical and hydraulic parts (mm)
|
711 x 350 x 1000 Will be placed on the ground floor within 2m of the lift
|
| Doors | Single hinged doors |
| Version optional shaft | Galvanized steel with optional glass |
| Options | – Fire retardant doors – Sliding doors |
| Colour | Lift parts can be executed in RAL color in consultation |
| Safety features | – The lift is protected against overload and hose and chain breakage – Protection against uncontrolled movements of the platform – Automatic Leveling System – Complies with the Machinery Directive |
